3.1.5 Motion Control

Introduction

In this exciting project, you’ll create a motion-controlled motor system that responds to tilting movements! The MPU6050 motion sensor is mounted on your breadboard setup, and you can control a stepper motor by carefully tilting the entire breadboard. Think of it like magic - tilt the breadboard left and the motor spins one way, tilt right and it spins the other way! This is the same technology used in VR controllers, game controllers, and motion-controlled devices.

Components

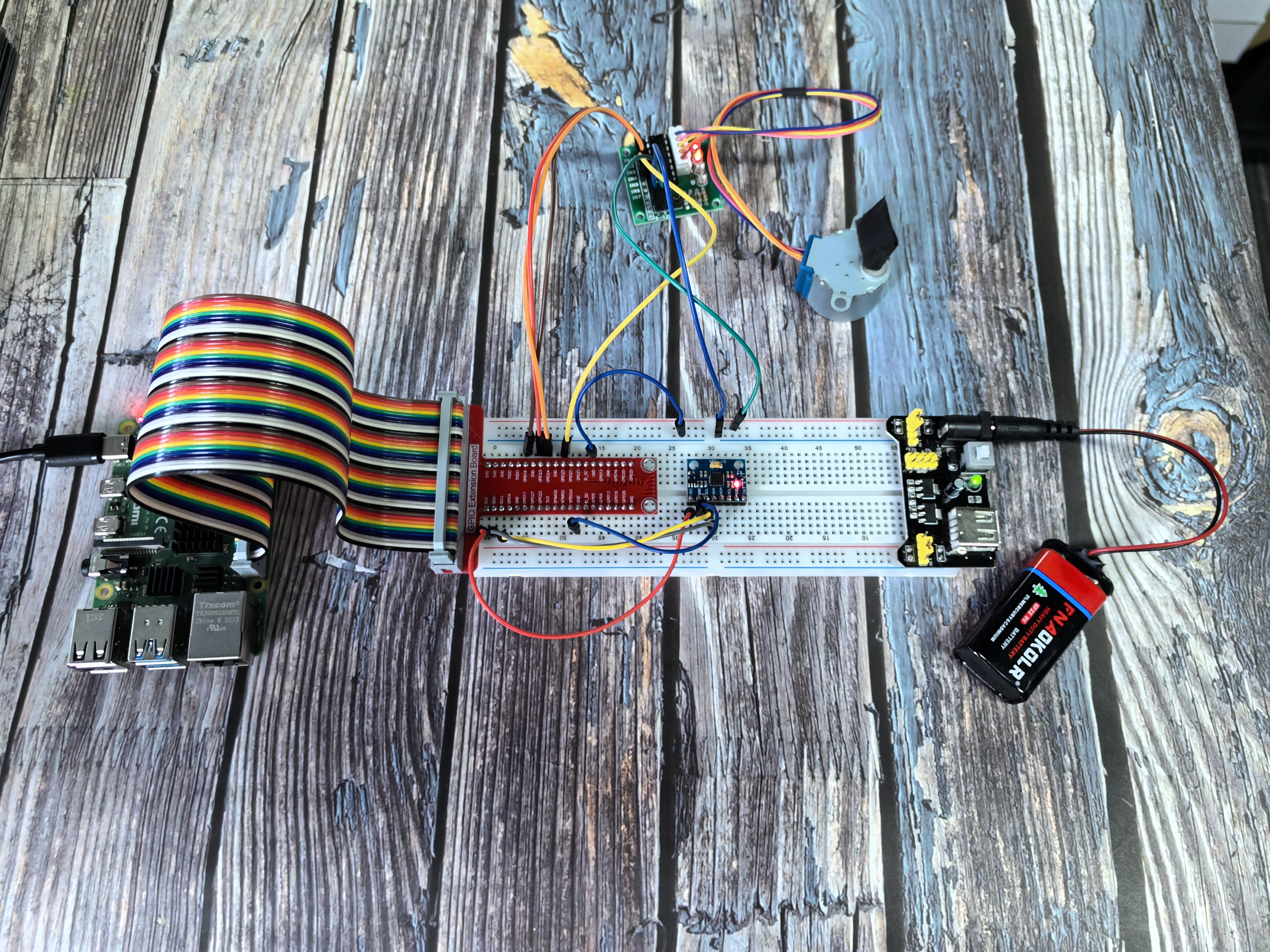

Connect

T-Board Name	physical	wiringPi	BCM
GPIO18	Pin 12	1	18
GPIO23	Pin 16	4	23
GPIO24	Pin 18	5	24
GPIO25	Pin 22	6	25
SDA1	Pin 3
SCL1	Pin 5

Code

For C Language User

Go to the code folder compile and run.

cd ~/super-starter-kit-for-raspberry-pi/c/3.1.5/

gcc 3.1.5_MotionControl.c -lwiringPi -lm

sudo ./a.out

How motion control works:

Once your program is running, the system responds to tilting the breadboard:

📋 Tilt the breadboard LEFT (more than 45°):: → Stepper motor rotates counterclockwise
📋 Tilt the breadboard RIGHT (more than 45°):: → Stepper motor rotates clockwise
📋 Keep the breadboard level (between -45° and +45°):: → Motor stays still

It’s like having a motion-sensitive control system built into your project!

Tip

Curious about the code? Use nano 3.1.5_MotionControl.c or nano 3.1.5_MotionControl.py to see how motion sensing translates into motor control!

For Python Language User

cd ~/super-starter-kit-for-raspberry-pi/Python/

python 3.1.5_MotionControl.py
