1.2.2 Passive Buzzer

Introduction

In this project, we’ll learn how to make a passive buzzer play different tones and simple melodies.

Components

What is a Passive Buzzer?

Unlike the active buzzer we used in the previous project, a passive buzzer: - Has no built-in sound generator - Can produce different musical tones (not just a single beep) - Requires changing signals to create sound - Is perfect for playing simple songs and melodies

How It Works

Our circuit uses: 1. A passive buzzer that can create different tones 2. An NPN transistor that acts as an electronic switch 3. A 1kΩ resistor to protect our components

The magic happens when we send different frequency signals to the buzzer through GPIO17. By changing how quickly we turn the signal on and off, we can create different musical notes. This is called Pulse Width Modulation (PWM).

Connect

T-Board Name	physical	wiringPi	BCM
GPIO17	Pin 11	0	17

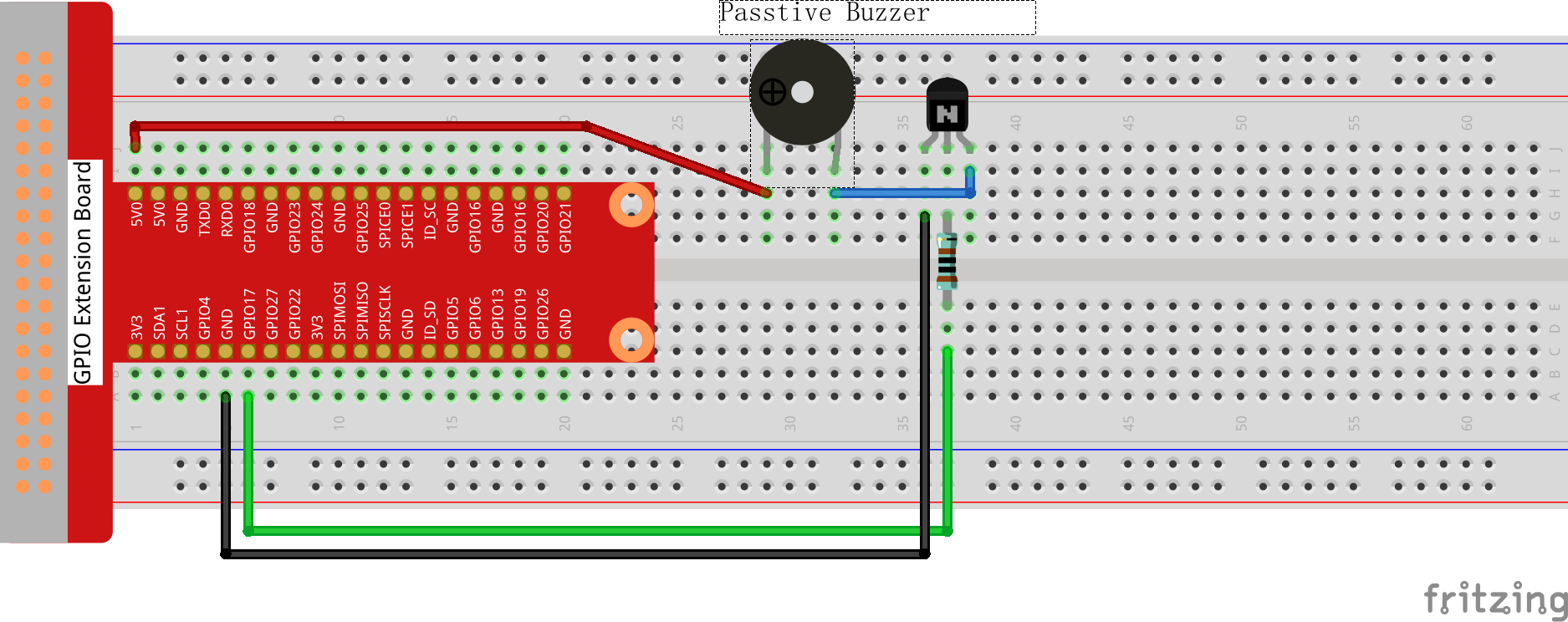

Follow these steps to connect your passive buzzer to the Raspberry Pi:

Connect the buzzer’s positive pin (longer pin with + mark) to the collector of the NPN transistor
Connect the buzzer’s negative pin (shorter pin) to the 3.3V pin on the Raspberry Pi
Connect the transistor’s emitter to GND (ground)
Connect a 1kΩ resistor between GPIO17 (physical pin 11) and the transistor’s base

Warning

Double-check your buzzer connections! The positive pin usually has a “+” mark or is longer.

Code

For C Language User

Go to the code folder compile and run.

cd ~/super-starter-kit-for-raspberry-pi/c/1.2.2/

gcc 1.2.2_PassiveBuzzer.c -lwiringPi

sudo ./a.out

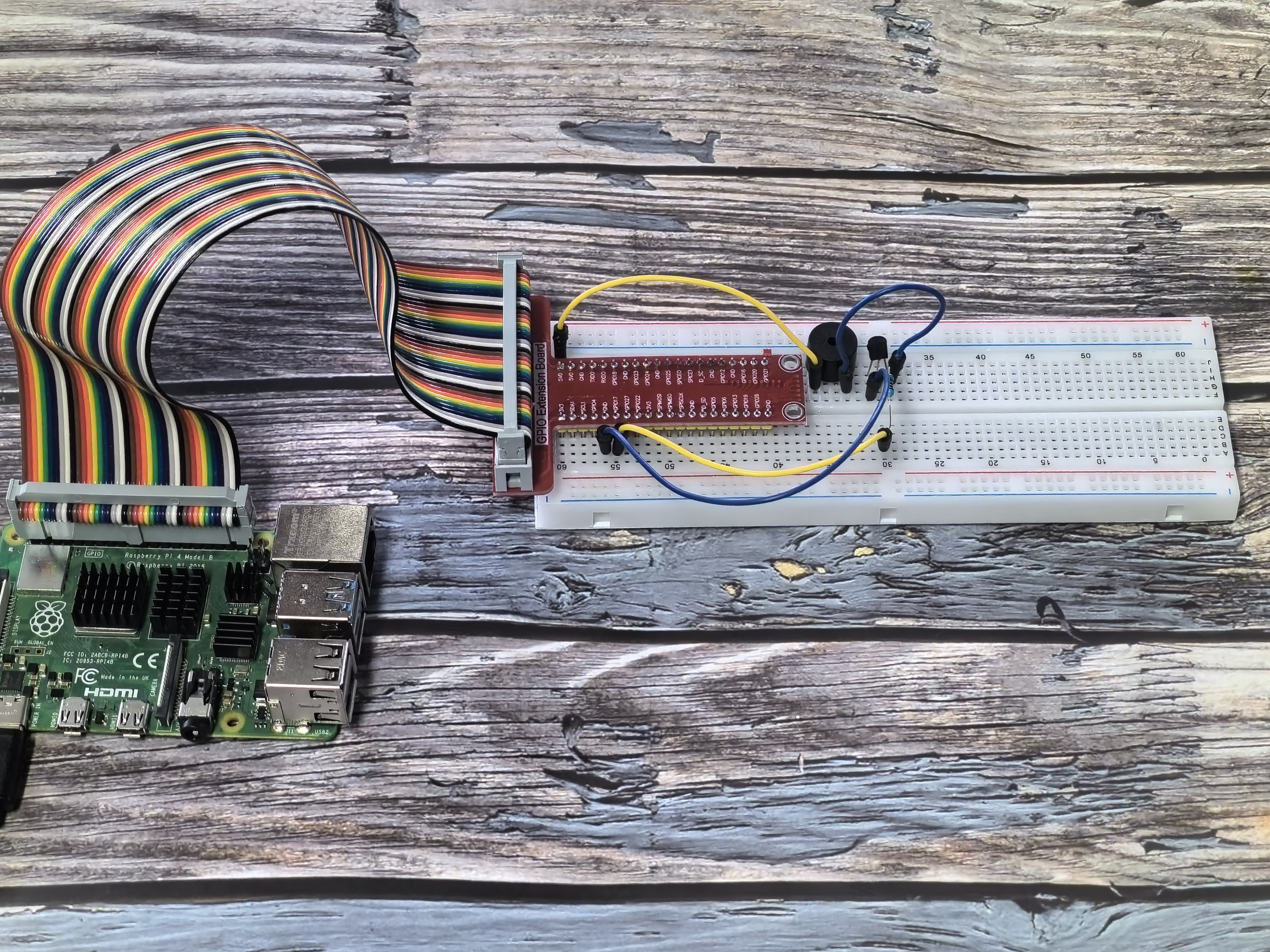

The code run, the buzzer plays a piece of music.

This is the complete code

#include <wiringPi.h>
 #include <softTone.h>
 #include <stdio.h>
 #include <stdlib.h> // Required for exit()

 // Define the GPIO pin for the passive buzzer.
 #define BUZZER_PIN 0

 // Define the base duration for one beat in milliseconds.
 #define BEAT_DURATION_MS 500

 // Define note frequencies for three octaves.
 // C (Do), D (Re), E (Mi), F (Fa), G (Sol), A (La), B (Si)
 #define NOTE_C_LOW  131
 #define NOTE_D_LOW  147
 #define NOTE_E_LOW  165
 #define NOTE_F_LOW  175
 #define NOTE_G_LOW  196
 #define NOTE_A_LOW  221
 #define NOTE_B_LOW  248

 #define NOTE_C_MID  262
 #define NOTE_D_MID  294
 #define NOTE_E_MID  330
 #define NOTE_F_MID  350
 #define NOTE_G_MID  393
 #define NOTE_A_MID  441
 #define NOTE_B_MID  495

 #define NOTE_C_HIGH 525
 #define NOTE_D_HIGH 589
 #define NOTE_E_HIGH 661
 #define NOTE_F_HIGH 700
 #define NOTE_G_HIGH 786
 #define NOTE_A_HIGH 882
 #define NOTE_B_HIGH 990

 // Structure to represent a musical note (frequency and duration).
 typedef struct {
     int frequency;
     int duration_beats;
 } Note;

 // First song: An array of Notes.
 const Note SONG_1[] = {
     {NOTE_E_MID, 1}, {NOTE_G_MID, 1}, {NOTE_A_MID, 3}, {NOTE_E_MID, 1}, {NOTE_D_MID, 1},
     {NOTE_E_MID, 3}, {NOTE_G_MID, 1}, {NOTE_A_MID, 1}, {NOTE_C_HIGH, 1}, {NOTE_A_MID, 1},
     {NOTE_G_MID, 1}, {NOTE_C_MID, 1}, {NOTE_E_MID, 1}, {NOTE_D_MID, 1}, {NOTE_D_MID, 3},
     {NOTE_E_MID, 1}, {NOTE_G_MID, 1}, {NOTE_D_MID, 3}, {NOTE_E_MID, 1}, {NOTE_E_MID, 1},
     {NOTE_A_LOW, 1}, {NOTE_A_LOW, 1}, {NOTE_A_LOW, 1}, {NOTE_C_MID, 1}, {NOTE_D_MID, 1},
     {NOTE_E_MID, 2}, {NOTE_D_MID, 1}, {NOTE_B_LOW, 1}, {NOTE_A_LOW, 1}, {NOTE_C_MID, 1},
     {NOTE_G_LOW, 3}
 };
 const int SONG_1_LENGTH = sizeof(SONG_1) / sizeof(SONG_1[0]);

 // Second song: An array of Notes.
 const Note SONG_2[] = {
     {NOTE_C_MID, 1}, {NOTE_C_MID, 1}, {NOTE_C_MID, 1}, {NOTE_G_LOW, 3}, {NOTE_E_MID, 1},
     {NOTE_E_MID, 1}, {NOTE_E_MID, 1}, {NOTE_C_MID, 3}, {NOTE_C_MID, 1}, {NOTE_E_MID, 1},
     {NOTE_G_MID, 1}, {NOTE_G_MID, 1}, {NOTE_F_MID, 1}, {NOTE_E_MID, 1}, {NOTE_D_MID, 3},
     {NOTE_D_MID, 1}, {NOTE_E_MID, 1}, {NOTE_F_MID, 1}, {NOTE_F_MID, 2}, {NOTE_E_MID, 1},
     {NOTE_D_MID, 1}, {NOTE_E_MID, 1}, {NOTE_C_MID, 3}, {NOTE_C_MID, 1}, {NOTE_E_MID, 1},
     {NOTE_D_MID, 1}, {NOTE_G_LOW, 3}, {NOTE_B_LOW, 3}, {NOTE_D_MID, 2}, {NOTE_C_MID, 3}
 };
 const int SONG_2_LENGTH = sizeof(SONG_2) / sizeof(SONG_2[0]);

 /**
 * @brief Initializes wiringPi and the softTone library for the buzzer.
 */
 void setup_passive_buzzer() {
     if (wiringPiSetup() == -1) {
         printf("Failed to setup wiringPi!\n");
         exit(1);
     }
     if (softToneCreate(BUZZER_PIN) == -1) {
         printf("Failed to setup softTone on pin %d!\n", BUZZER_PIN);
         exit(1);
     }
 }

 /**
 * @brief Plays a song on the buzzer.
 * @param song An array of Note structures representing the song.
 * @param length The number of notes in the song.
 */
 void play_song(const Note song[], int length) {
     for (int i = 0; i < length; i++) {
         softToneWrite(BUZZER_PIN, song[i].frequency);
         delay(song[i].duration_beats * BEAT_DURATION_MS);
     }
     // Stop the tone after the song is finished.
     softToneWrite(BUZZER_PIN, 0);
 }

 /**
 * @brief Main function.
 * @return Integer status code.
 */
 int main(void) {
     setup_passive_buzzer();

     while (1) {
         printf("Playing the first song...\n");
         play_song(SONG_1, SONG_1_LENGTH);
         delay(1000); // Pause between songs

         printf("Playing the second song...\n");
         play_song(SONG_2, SONG_2_LENGTH);
         delay(1000); // Pause before repeating
     }

     return 0; // This is unreachable.

For Python Language User

Go to the code folder and run.

cd ~/super-starter-kit-for-raspberry-pi/python

python 1.2.2_PassiveBuzzer.py
