1.3.3 Stepper Motor

Introduction

In this project, we’ll learn how to control a stepper motor - a special type of motor that moves in precise “steps” rather than spinning continuously. Stepper motors are perfect for projects that need exact positioning, like 3D printers, robot arms, or camera sliders.

Components

What is a Stepper Motor?

A stepper motor is different from regular DC motors because: - It moves in small, precise steps (like clicks) instead of spinning smoothly - You can control exactly how far it turns - It can hold its position firmly when stopped - It’s perfect for projects needing accurate positioning

In this project, we use a unipolar stepper motor with four phases (or coils).

How Stepper Motors Work - The Simple Version

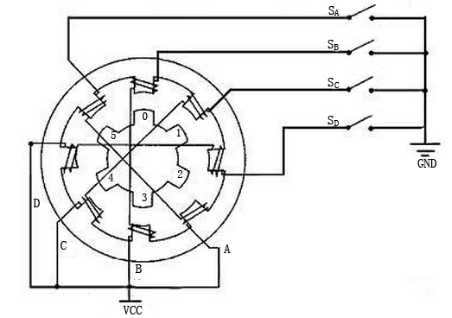

Think of a stepper motor like a round magnet (the rotor) surrounded by four electromagnets (the coils):

When you turn on one electromagnet, it attracts the rotor and makes it turn slightly
Then you turn on the next electromagnet and turn off the first one
The rotor turns a little more to align with the new active electromagnet
By turning the electromagnets on and off in sequence, the motor rotates step by step

This step-by-step movement gives stepper motors their name and their precision.

Why Stepper Motors Are Special

Our stepper motor: - Has 32 magnetic poles inside - Uses a gear system with a 64:1 ratio - Needs 2048 steps to make one complete rotation - Can be positioned with incredible precision (less than 0.2 degrees per step)

This precision makes stepper motors ideal for robots, 3D printers, and other machines that need exact positioning.

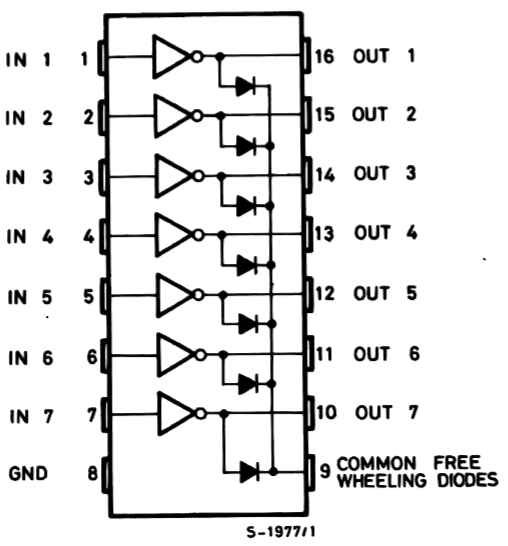

The ULN2003 Driver Board

The stepper motor needs more power than the Raspberry Pi can provide, so we use a ULN2003 driver board:

It acts as a power amplifier between the Pi and the motor
It has 4 input pins (IN1-IN4) that connect to the Raspberry Pi
It has 4 output pins that connect to the motor’s coils
It includes 4 LEDs that show which coil is active
It inverts the signals (when input is HIGH, output is LOW)

How the Driver Works

The driver board makes controlling the stepper motor simple: - When you set IN1 to HIGH, the first coil in the motor activates - When you set IN2 to HIGH, the second coil activates - By activating the coils in the right sequence, the motor turns step by step - The LEDs on the board light up to show which coil is currently active

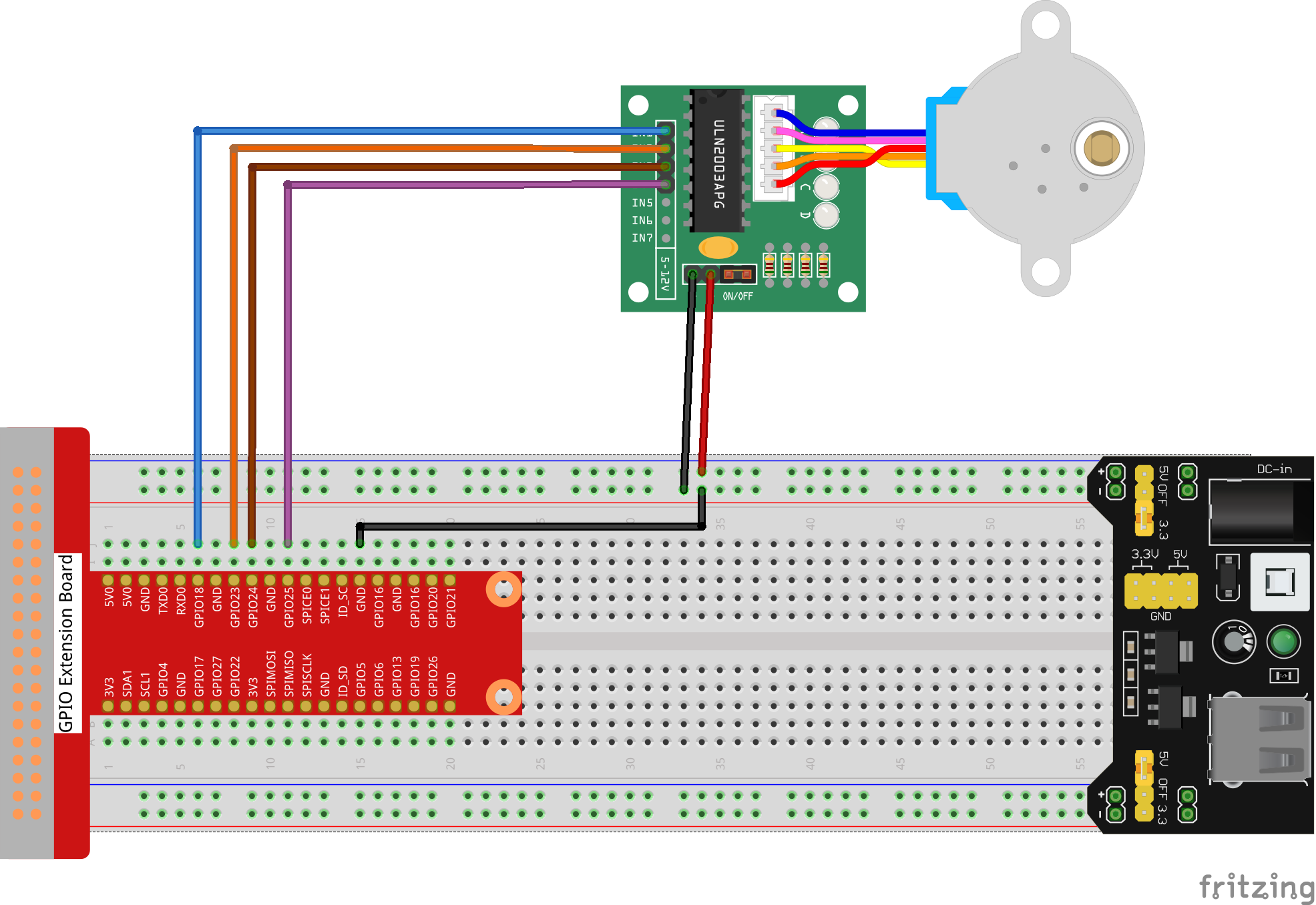

Connect

T-Board Name	physical	wiringPi	BCM
GPIO18	Pin 12	1	18
GPIO23	Pin 16	4	23
GPIO24	Pin 18	5	24
GPIO25	Pin 22	6	25

Code

For C Language User

Go to the code folder compile and run.

cd ~/super-starter-kit-for-raspberry-pi/c/1.3.2/

gcc 1.3.3_StepperMotor.c -lwiringPi

sudo ./a.out

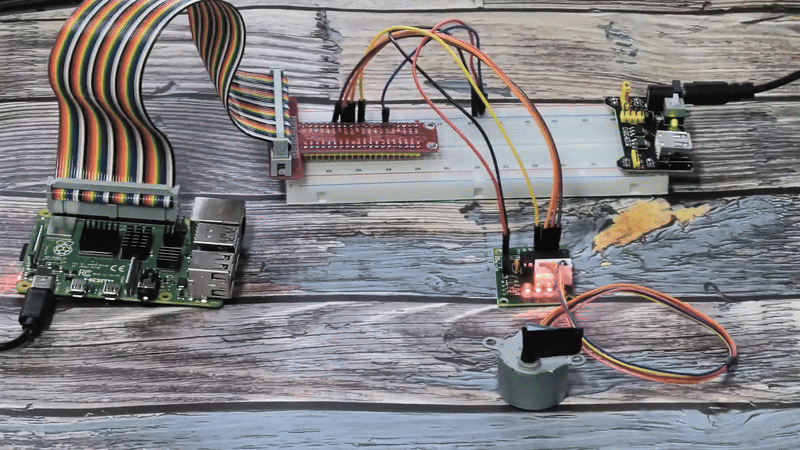

As the code runs, the stepper motor will automatically rotate one full revolution clockwise, pause, then rotate one full revolution anticlockwise, and repeat this cycle continuously.

This is the complete code

#include <stdio.h>
#include <stdlib.h> // Required for exit()
#include <wiringPi.h>
#include <termios.h> // For non-blocking getchar
#include <unistd.h>  // For STDIN_FILENO

// Define the GPIO pins connected to the ULN2003 driver for the stepper motor.
const int MOTOR_PINS[] = {1, 4, 5, 6};
const int NUM_MOTOR_PINS = sizeof(MOTOR_PINS) / sizeof(MOTOR_PINS[0]);

// This 8-step sequence corresponds to half-step mode for a 28BYJ-48 motor,
// which provides smoother rotation and more steps per revolution.
const int HALF_STEP_SEQUENCE[8][4] = {
    {1, 0, 0, 0},
    {1, 1, 0, 0},
    {0, 1, 0, 0},
    {0, 1, 1, 0},
    {0, 0, 1, 0},
    {0, 0, 1, 1},
    {0, 0, 0, 1},
    {1, 0, 0, 1}
};

/**
* @brief Sets the motor pins to a specific step in the sequence.
* @param step The step number (0-7) in the half-step sequence.
*/
void set_step(int step) {
    for (int i = 0; i < NUM_MOTOR_PINS; i++) {
        digitalWrite(MOTOR_PINS[i], HALF_STEP_SEQUENCE[step][i]);
    }
}

/**
* @brief Rotates the motor by a given number of steps in a specified direction.
* @param steps The number of steps to rotate.
* @param clockwise If true, rotate clockwise; otherwise, anti-clockwise.
* @param step_delay_us The delay in microseconds between each step, controls speed.
*/
void rotate_steps(int steps, int clockwise, int step_delay_us) {
    static int current_step = 0;
    int step_increment = clockwise ? 1 : -1;

    for (int i = 0; i < steps; i++) {
        current_step = (current_step + step_increment + 8) % 8;
        set_step(current_step);
        delayMicroseconds(step_delay_us);
    }
}

/**
* @brief Initializes GPIO pins for the stepper motor.
*/
void setup_stepper() {
    if (wiringPiSetup() == -1) {
        printf("Failed to setup wiringPi!\n");
        exit(1);
    }
    for (int i = 0; i < NUM_MOTOR_PINS; i++) {
        pinMode(MOTOR_PINS[i], OUTPUT);
    }
}

/**
* @brief Main function to control the stepper motor.
* @return Integer status code.
*/
int main(void) {
    setup_stepper();

    // The 28BYJ-48 motor has a gear ratio of ~64:1 and takes 32 steps per internal
    // revolution in full-step mode. In half-step mode (8 steps per sequence),
    // it's 64 steps. So, one full output revolution is 64 * 64 = 4096 steps.
    const int STEPS_PER_REVOLUTION = 4096;

    // Calculate delay for a target RPM (e.g., 15 RPM).
    const int TARGET_RPM = 15;
    const int step_delay_us = 60 * 1000 * 1000 / STEPS_PER_REVOLUTION / TARGET_RPM;

    printf("Stepper motor control initialized.\n");
    printf("Rotating one full revolution clockwise, then one anti-clockwise.\n");

    while (1) {
        // Rotate one full revolution clockwise.
        printf("-> Clockwise rotation...\n");
        rotate_steps(STEPS_PER_REVOLUTION, 1, step_delay_us);
        delay(1000); // Pause for 1 second.

        // Rotate one full revolution anti-clockwise.
        printf("<- Anti-clockwise rotation...\n");
        rotate_steps(STEPS_PER_REVOLUTION, 0, step_delay_us);
        delay(1000); // Pause for 1 second.
    }

    return 0; // Unreachable code.
}

For Python Language User

Go to the code folder and run.

cd ~/super-starter-kit-for-raspberry-pi/python

python 1.3.3_StepperMotor.py
